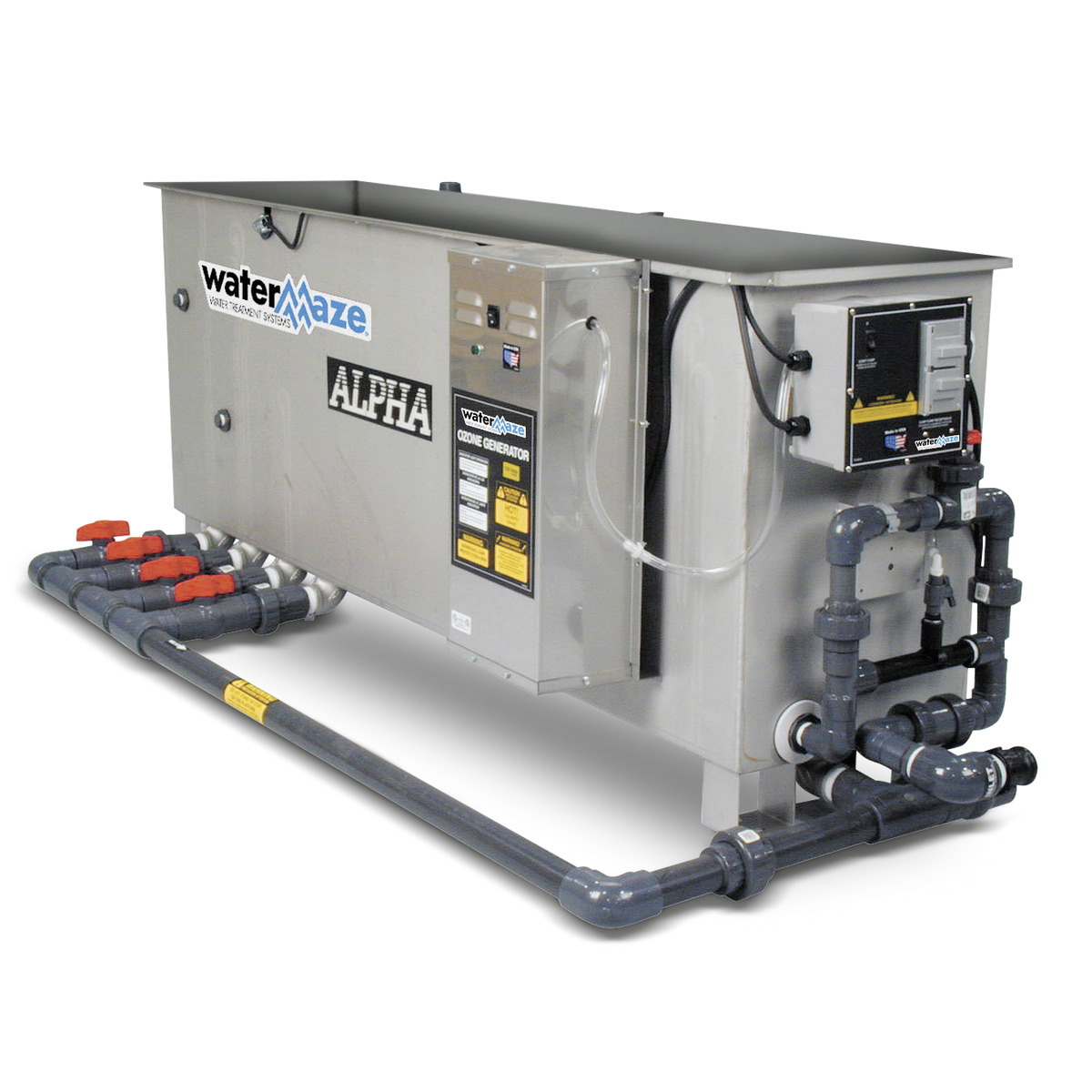

The Alpha is a highly effective above-ground oil/water separator that works in conjunction with catch basins and collection pits to treat and discharge wash water to meet local and federal sewer sanitation regulations. The genius of the easy-to-use Alpha system is the proprietary “maze” design of the oleophilic—oil-loving coalescing plates, which are meshed together and aligned at a specific angle to produce optimum separation of oil and water. The Alpha-1500D accommodates water flow rates of up to 15 GPM and can be used in conjunction with other systems or serve as a stand-alone oil-water separator. Other features include its rust-resistant tank made of 12-gauge stainless steel, an industrial-duty ultra-violet water odor treatment ozone generator for optimum odor control, and a NEMA control center for automatic operation.
Technical data
| Power supply (Ph/V) | 1 / 120 |
| Amps (A) | 10 |
| Flow Rate (gal/min) | max. 15 |
| Coalescing area (ft²) | 500 |
| Container capacity (gal) | 125 |
| Weight without accessories (lb) | 325 |
| Shipping Weight (lb) | 545 |
| Dimensions (L x W x H) (in) | 80 / 36 / 32 |
| Dimensions, packaged (in) | 92 / 46 / 34 |
