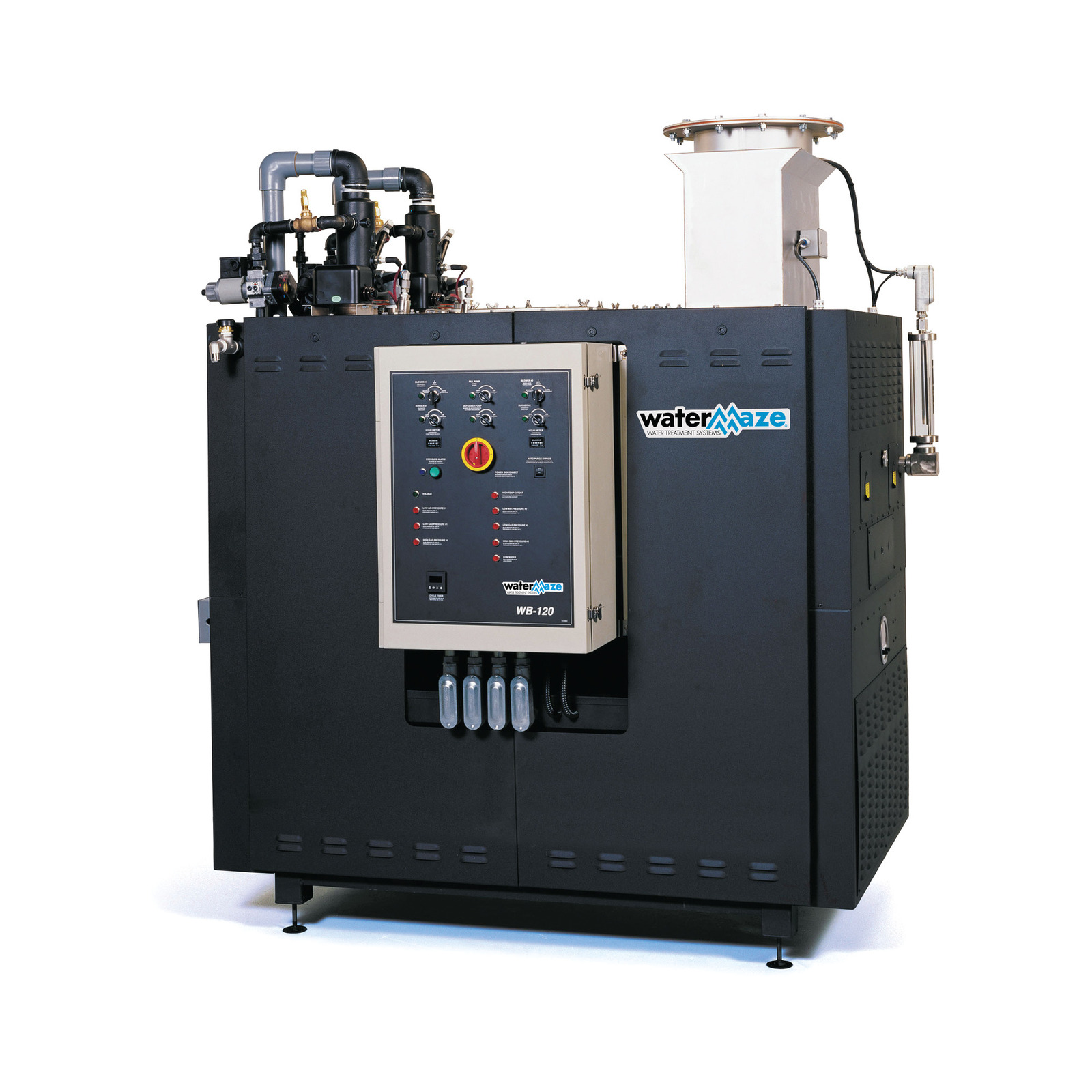

The WB-120A Water Blaze is a submerged combustion water evaporator. This super energy-efficient wastewater evaporator system with patented design uses submerged combustion technology whereby heat is forced through a submerged tube and released directly into the water for 100% heat exchanger efficiency and dramatic operational and energy cost savings. The WB-120A is capable of handling waste streams at 120 gallons per hour and features top-of-the-line immersion tube jet burner components. With a solid-state flame control monitor, the WB-120A is capable of creating temperatures of up to 2000°F, releasing hot flue gases directly into the water.
Technical data
| Foam lance holder set | Water Maze |
| Power supply (Ph/V/Hz) | 1 / 230 / 60 |
| Amps (A) | 22 |
| Flow Rate (gal/h) | max. 120 |
| BTU | 1142000 |
| Container capacity (gal) | 170 |
| Exhaust Stack diameter (in) | 12 |
| Weight without accessories (lb) | 1690 |
| Shipping Weight (lb) | 2240 |
| Dimensions (L x W x H) (in) | 68 / 40 / 80 |
| Dimensions, packaged (in) | 80 / 55 / 81 |
